[hungryhounduk]

Hey Guys and Gals

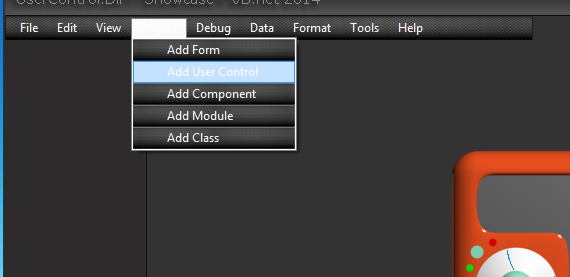

I am making a .DLL and I seem to have an Issue with the Menustrip, If you see the Pic above and see that as you hover the Mouse over the Item to be Selected it produces a Blue Colour. I have gone through all the Menustrip Settings and can't seem to make it go away?, I am not sure if that's just how it's meant to be or can I adjust it's colour through coding?.

Also

The white area above Each Item, How can I sort that out aswell


ps, I have included the dll as an attachment, there is no coding on the dll, it's just the menustrip with the Items as in the pic above, So if someone could have a look for me that would be great..

Any Help would be grateful

Cheers

Chris

[clanc789]

Is the mouseover function available? If so it'd be quite easy.

[hungryhounduk]

Hey

Yes the Mouseover function is available

Chris

[Dummy1912]

i have no idea how you code looks like
but i made my own as well
and i used Color.Transparent

Code: Select all

Public Overrides ReadOnly Property MenuItemSelectedGradientBegin() As Color 'mouse hover
                Get
                    Return Color.Transparent
                End Get
            End Property

[hungryhounduk]

Hey Dummy
I tried that But It does not work for me?


Chris

[anthonygz]

this.menuStrip1.BackColor = Color.FromKnownColor(KnownColor.Control); // Sets the color to the default instead of blue being the override; this mainly happens when the operating system changes it upon launching

Or set RenderMode to System if it's switched to manageRenderMode

Or if you're using the latest version of the program, the theme itself is defaulted to blue because it uses the 2003 office theme for most of its tools including the menustrip because it used to be the windows menu itself; but was later changed to the "Office Theme" Blue Style later on in the development process.

All three can be a solution, but the third just offers an answer to why and not the solution that you're looking for obviously.

Or go the hard route and declare a new Professional Table to overwrite everything:

ToolStrip.Renderer = new ToolStripProfessionalRenderer(new TanColorTable());
Depending on how you're program is layed out; it can also be this:
ToolStripManager.Renderer = new ToolStripProfessionalRenderer(new TanColorTable());
//Credits to JFO for Professional Render Table

using System;
using System.Collections.Generic;
using System.Text;
using System.Windows.Forms;
using System.Collections;
using System.Drawing;
using Microsoft.Win32;
using System.Runtime.InteropServices;
using System.Windows.Forms.VisualStyles;
using System.IO;

namespace Microsoft.Samples {
internal class TanColorTable : ProfessionalColorTable {
// Methods
public TanColorTable() {
}

internal Color FromKnownColor(TanColorTable.KnownColors color) {
return (Color)this.ColorTable[color];
}

internal static void InitTanLunaColors(ref Dictionary<TanColorTable.KnownColors, Color> rgbTable) {
rgbTable[TanColorTable.KnownColors.GripDark] = Color.FromArgb(0xc1, 190, 0xb3);
rgbTable[TanColorTable.KnownColors.SeparatorDark] = Color.FromArgb(0xc5, 0xc2, 0xb8);
rgbTable[TanColorTable.KnownColors.MenuItemSelected] = Color.FromArgb(0xc1, 210, 0xee);
rgbTable[TanColorTable.KnownColors.ButtonPressedBorder] = Color.FromArgb(0x31, 0x6a, 0xc5);
rgbTable[TanColorTable.KnownColors.CheckBackground] = Color.FromArgb(0xe1, 230, 0xe8);
rgbTable[TanColorTable.KnownColors.MenuItemBorder] = Color.FromArgb(0x31, 0x6a, 0xc5);
rgbTable[TanColorTable.KnownColors.CheckBackgroundMouseOver] = Color.FromArgb(0x31, 0x6a, 0xc5);
rgbTable[TanColorTable.KnownColors.MenuItemBorderMouseOver] = Color.FromArgb(0x4b, 0x4b, 0x6f);
rgbTable[TanColorTable.KnownColors.ToolStripDropDownBackground] = Color.FromArgb(0xfc, 0xfc, 0xf9);
rgbTable[TanColorTable.KnownColors.MenuBorder] = Color.FromArgb(0x8a, 0x86, 0x7a);
rgbTable[TanColorTable.KnownColors.SeparatorLight] = Color.FromArgb(0xff, 0xff, 0xff);
rgbTable[TanColorTable.KnownColors.ToolStripBorder] = Color.FromArgb(0xa3, 0xa3, 0x7c);
rgbTable[TanColorTable.KnownColors.MenuStripGradientBegin] = Color.FromArgb(0xe5, 0xe5, 0xd7);
rgbTable[TanColorTable.KnownColors.MenuStripGradientEnd] = Color.FromArgb(0xf4, 0xf2, 0xe8);
rgbTable[TanColorTable.KnownColors.ImageMarginGradientBegin] = Color.FromArgb(0xfe, 0xfe, 0xfb);
rgbTable[TanColorTable.KnownColors.ImageMarginGradientMiddle] = Color.FromArgb(0xec, 0xe7, 0xe0);
rgbTable[TanColorTable.KnownColors.ImageMarginGradientEnd] = Color.FromArgb(0xbd, 0xbd, 0xa3);
rgbTable[TanColorTable.KnownColors.OverflowButtonGradientBegin] = Color.FromArgb(0xf3, 0xf2, 240);
rgbTable[TanColorTable.KnownColors.OverflowButtonGradientMiddle] = Color.FromArgb(0xe2, 0xe1, 0xdb);
rgbTable[TanColorTable.KnownColors.OverflowButtonGradientEnd] = Color.FromArgb(0x92, 0x92, 0x76);
rgbTable[TanColorTable.KnownColors.MenuItemPressedGradientBegin] = Color.FromArgb(0xfc, 0xfc, 0xf9);
rgbTable[TanColorTable.KnownColors.MenuItemPressedGradientEnd] = Color.FromArgb(0xf6, 0xf4, 0xec);
rgbTable[TanColorTable.KnownColors.ImageMarginRevealedGradientBegin] = Color.FromArgb(0xf7, 0xf6, 0xef);
rgbTable[TanColorTable.KnownColors.ImageMarginRevealedGradientMiddle] = Color.FromArgb(0xf2, 240, 0xe4);
rgbTable[TanColorTable.KnownColors.ImageMarginRevealedGradientEnd] = Color.FromArgb(230, 0xe3, 210);
rgbTable[TanColorTable.KnownColors.ButtonCheckedGradientBegin] = Color.FromArgb(0xe1, 230, 0xe8);
rgbTable[TanColorTable.KnownColors.ButtonCheckedGradientMiddle] = Color.FromArgb(0xe1, 230, 0xe8);
rgbTable[TanColorTable.KnownColors.ButtonCheckedGradientEnd] = Color.FromArgb(0xe1, 230, 0xe8);
rgbTable[TanColorTable.KnownColors.ButtonSelectedGradientBegin] = Color.FromArgb(0xc1, 210, 0xee);
rgbTable[TanColorTable.KnownColors.ButtonSelectedGradientMiddle] = Color.FromArgb(0xc1, 210, 0xee);
rgbTable[TanColorTable.KnownColors.ButtonSelectedGradientEnd] = Color.FromArgb(0xc1, 210, 0xee);
rgbTable[TanColorTable.KnownColors.ButtonPressedGradientBegin] = Color.FromArgb(0x98, 0xb5, 0xe2);
rgbTable[TanColorTable.KnownColors.ButtonPressedGradientMiddle] = Color.FromArgb(0x98, 0xb5, 0xe2);
rgbTable[TanColorTable.KnownColors.ButtonPressedGradientEnd] = Color.FromArgb(0x98, 0xb5, 0xe2);
rgbTable[TanColorTable.KnownColors.GripLight] = Color.FromArgb(0xff, 0xff, 0xff);
}

public override Color ButtonCheckedGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonCheckedGradientBegin);
}
return base.ButtonCheckedGradientBegin;
}
}

public override Color ButtonCheckedGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonCheckedGradientEnd);
}
return base.ButtonCheckedGradientEnd;
}
}

public override Color ButtonCheckedGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonCheckedGradientMiddle);
}
return base.ButtonCheckedGradientMiddle;
}
}


public override Color ButtonPressedBorder {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonPressedBorder);
}
return base.ButtonPressedBorder;
}
}

public override Color ButtonPressedGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonPressedGradientBegin);
}
return base.ButtonPressedGradientBegin;
}
}

public override Color ButtonPressedGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonPressedGradientEnd);
}
return base.ButtonPressedGradientEnd;
}
}


public override Color ButtonPressedGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonPressedGradientMiddle);
}
return base.ButtonPressedGradientMiddle;
}
}

public override Color ButtonSelectedBorder {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonPressedBorder);
}
return base.ButtonSelectedBorder;
}
}


public override Color ButtonSelectedGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonSelectedGradientBegin);
}
return base.ButtonSelectedGradientBegin;
}
}
public override Color ButtonSelectedGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonSelectedGradientEnd);
}
return base.ButtonSelectedGradientEnd;
}
}
public override Color ButtonSelectedGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonSelectedGradientMiddle);
}
return base.ButtonSelectedGradientMiddle;
}
}

public override Color CheckBackground {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.CheckBackground);
}
return base.CheckBackground;
}
}

public override Color CheckPressedBackground {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.CheckBackgroundMouseOver);
}
return base.CheckPressedBackground;
}
}

public override Color CheckSelectedBackground {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.CheckBackgroundMouseOver);
}
return base.CheckSelectedBackground;
}
}


internal static string ColorScheme {
get {
return TanColorTable.DisplayInformation.ColorScheme;
}
}

private Dictionary<KnownColors,Color> ColorTable {
get {
if (this.tanRGB == null) {
this.tanRGB = new Dictionary<KnownColors,Color>((int)KnownColors.LastKnownColor);
TanColorTable.InitTanLunaColors(ref this.tanRGB);
}
return this.tanRGB;
}
}

public override Color GripDark {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.GripDark);
}
return base.GripDark;
}
}

public override Color GripLight {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.GripLight);
}
return base.GripLight;
}
}
public override Color ImageMarginGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginGradientBegin);
}
return base.ImageMarginGradientBegin;
}
}

public override Color ImageMarginGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginGradientEnd);
}
return base.ImageMarginGradientEnd;
}
}

public override Color ImageMarginGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginGradientMiddle);
}
return base.ImageMarginGradientMiddle;
}
}

public override Color ImageMarginRevealedGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginRevealedGradientBegin);
}
return base.ImageMarginRevealedGradientBegin;
}
}

public override Color ImageMarginRevealedGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginRevealedGradientEnd);
}
return base.ImageMarginRevealedGradientEnd;
}
}

public override Color ImageMarginRevealedGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginRevealedGradientMiddle);
}
return base.ImageMarginRevealedGradientMiddle;
}
}

public override Color MenuBorder {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuBorder);
}
return base.MenuItemBorder;
}
}


public override Color MenuItemBorder {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuItemBorder);
}
return base.MenuItemBorder;
}
}

public override Color MenuItemPressedGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuItemPressedGradientBegin);
}
return base.MenuItemPressedGradientBegin;
}
}

public override Color MenuItemPressedGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuItemPressedGradientEnd);
}
return base.MenuItemPressedGradientEnd;
}
}

public override Color MenuItemPressedGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginRevealedGradientMiddle);
}
return base.MenuItemPressedGradientMiddle;
}
}

public override Color MenuItemSelected {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuItemSelected);
}
return base.MenuItemSelected;
}
}

public override Color MenuItemSelectedGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonSelectedGradientBegin);
}
return base.MenuItemSelectedGradientBegin;
}
}

public override Color MenuItemSelectedGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ButtonSelectedGradientEnd);
}
return base.MenuItemSelectedGradientEnd;
}
}


public override Color MenuStripGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuStripGradientBegin);
}
return base.MenuStripGradientBegin;
}
}

public override Color MenuStripGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuStripGradientEnd);
}
return base.MenuStripGradientEnd;
}
}

public override Color OverflowButtonGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.OverflowButtonGradientBegin);
}
return base.OverflowButtonGradientBegin;
}
}

public override Color OverflowButtonGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.OverflowButtonGradientEnd);
}
return base.OverflowButtonGradientEnd;
}
}

public override Color OverflowButtonGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.OverflowButtonGradientMiddle);
}
return base.OverflowButtonGradientMiddle;
}
}


public override Color RaftingContainerGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuStripGradientBegin);
}
return base.RaftingContainerGradientBegin;
}
}

public override Color RaftingContainerGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.MenuStripGradientEnd);
}
return base.RaftingContainerGradientEnd;
}
}


public override Color SeparatorDark {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.SeparatorDark);
}
return base.SeparatorDark;
}
}

public override Color SeparatorLight {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.SeparatorLight);
}
return base.SeparatorLight;
}
}

public override Color ToolStripBorder {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ToolStripBorder);
}
return base.ToolStripBorder;
}
}


public override Color ToolStripDropDownBackground {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ToolStripDropDownBackground);
}
return base.ToolStripDropDownBackground;
}
}

public override Color ToolStripGradientBegin {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginGradientBegin);
}
return base.ToolStripGradientBegin;
}
}

public override Color ToolStripGradientEnd {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginGradientEnd);
}
return base.ToolStripGradientEnd;
}
}

public override Color ToolStripGradientMiddle {
get {
if (!this.UseBaseColorTable) {
return this.FromKnownColor(TanColorTable.KnownColors.ImageMarginGradientMiddle);
}
return base.ToolStripGradientMiddle;
}
}

private bool UseBaseColorTable {
get {
bool flag1 = !TanColorTable.DisplayInformation.IsLunaTheme || ((TanColorTable.ColorScheme != "HomeStead") && (TanColorTable.ColorScheme != "NormalColor"));
if (flag1 && (this.tanRGB != null)) {
this.tanRGB.Clear();
this.tanRGB = null;
}
return flag1;
}
}



// Fields
private const string blueColorScheme = "NormalColor";
private const string oliveColorScheme = "HomeStead";
private const string silverColorScheme = "Metallic";
private Dictionary<TanColorTable.KnownColors, Color> tanRGB;

// Nested Types
private static class DisplayInformation {
// Methods
static DisplayInformation() {
SystemEvents.UserPreferenceChanged += new UserPreferenceChangedEventHandler(TanColorTable.DisplayInformation.OnUserPreferenceChanged);
TanColorTable.DisplayInformation.SetScheme();
}

private static void OnUserPreferenceChanged(object sender, UserPreferenceChangedEventArgs e) {
TanColorTable.DisplayInformation.SetScheme();
}

private static void SetScheme() {
TanColorTable.DisplayInformation.isLunaTheme = false;
if (VisualStyleRenderer.IsSupported) {
DisplayInformation.colorScheme = VisualStyleInformation.ColorScheme;

if (!VisualStyleInformation.IsEnabledByUser) {
return;
}
StringBuilder builder1 = new StringBuilder(0x200);
GetCurrentThemeName(builder1, builder1.Capacity, null, 0, null, 0);
string text1 = builder1.ToString();
TanColorTable.DisplayInformation.isLunaTheme = string.Equals("luna.msstyles", Path.GetFileName(text1), StringComparison.InvariantCultureIgnoreCase);
}
else {
TanColorTable.DisplayInformation.colorScheme = null;
}
}


// Properties

public static string ColorScheme {
get {
return colorScheme;
}
}

internal static bool IsLunaTheme {
get {
return isLunaTheme;
}
}

// Fields
[ThreadStatic]
private static string colorScheme;
[ThreadStatic]
private static bool isLunaTheme;
private const string lunaFileName = "luna.msstyles";

[DllImport("uxtheme.dll", CharSet = CharSet.Auto)]
public static extern int GetCurrentThemeName(StringBuilder pszThemeFileName, int dwMaxNameChars, StringBuilder pszColorBuff, int dwMaxColorChars, StringBuilder pszSizeBuff, int cchMaxSizeChars);

}

internal enum KnownColors {
ButtonPressedBorder,
MenuItemBorder,
MenuItemBorderMouseOver,
MenuItemSelected,
CheckBackground,
CheckBackgroundMouseOver,
GripDark,
GripLight,
MenuStripGradientBegin,
MenuStripGradientEnd,
ImageMarginRevealedGradientBegin,
ImageMarginRevealedGradientEnd,
ImageMarginRevealedGradientMiddle,
MenuItemPressedGradientBegin,
MenuItemPressedGradientEnd,
ButtonPressedGradientBegin,
ButtonPressedGradientEnd,
ButtonPressedGradientMiddle,
ButtonSelectedGradientBegin,
ButtonSelectedGradientEnd,
ButtonSelectedGradientMiddle,
OverflowButtonGradientBegin,
OverflowButtonGradientEnd,
OverflowButtonGradientMiddle,
ButtonCheckedGradientBegin,
ButtonCheckedGradientEnd,
ButtonCheckedGradientMiddle,
ImageMarginGradientBegin,
ImageMarginGradientEnd,
ImageMarginGradientMiddle,
MenuBorder,
ToolStripDropDownBackground,
ToolStripBorder,
SeparatorDark,
SeparatorLight,
LastKnownColor = SeparatorLight,

}
}

}
This bit of code written by JFO will replace everything to the old style of VS making the color customizable and changeable once more like the old version given out before.

[hungryhounduk]

Wow!

That was some Paste

Sorry but that is all double dutch to me I am more a Designer than a Coder and that just Fried my Brain looking at it..

But thanks alot for the time and effort to post that all up

If someone could talk me through changing to that above, that would be great.

I am using VB2010 Pro

Cheers

Chris

[XTechVB]

Why not create a MenuStripRenderer like this

Code: Select all

Public Class MyRenderer : Inherits ToolStripRenderer
    Protected Overrides Sub OnRenderMenuItemBackground(ByVal e As System.Windows.Forms.ToolStripItemRenderEventArgs)
        Using ItemBrush As SolidBrush = New SolidBrush(YOUR COLOR HERE)
            If e.Item.Selected Then
                e.Graphics.FillRectangle(ItemBrush, 0, 0, e.Item.Width, e.Item.Height)
            End If
        End Using
    End Sub
End Class

Obviously this is very limited, but you can easily expand it. By using a Renderer you can change everything about a MenuStrip.

[clanc789]

Hey Chris, if you give me your skype then I can try to help you via teamviewer (skype for the easier way of chatting).

[hungryhounduk]

Hi Clanc789
I dont have Skype( actually i do but not on this computer and I have forgotten my Username and Password) :(

Chris
